Low temperature alert appears when the block is warming up. It alerts the user that the temperature is below the set value.
- High temperature alert appears when the block is warming up. It alerts the user that the temperature is above the set value.
- Countdown timer shows time remaining until the heating element shuts off.

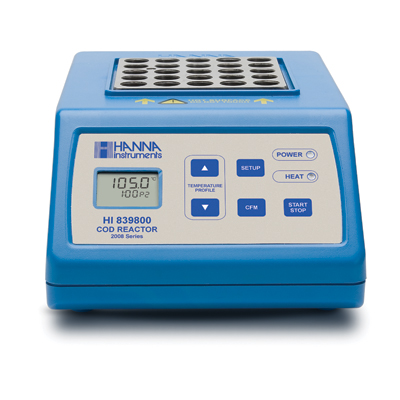

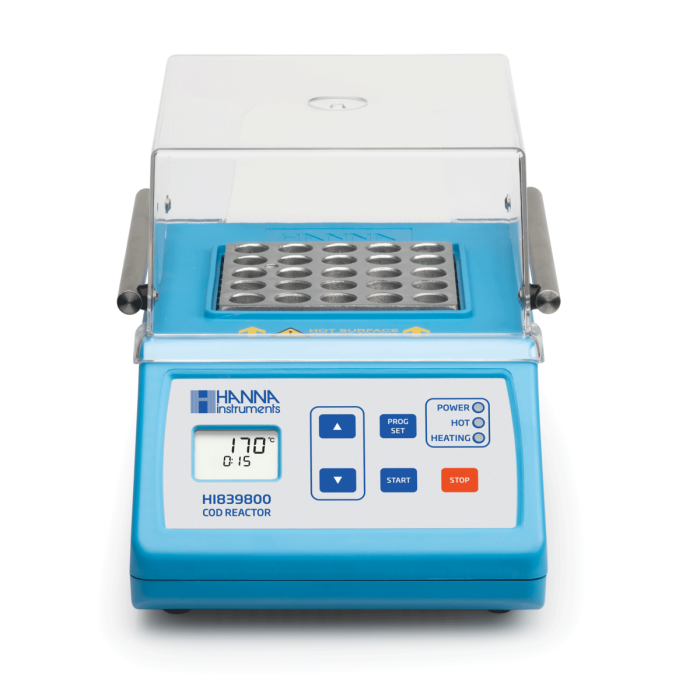

The HI 839800 COD reactor is constructed of durable materials. The aluminum block incorporates a 25-vial capacity and a well for a reference temperature probe.
The HI 839800 COD reactor is an easy to use test tube heater. Its well-marked user interface provides intuitive operation. The reactor is equipped with two predefined temperature settings: 150º and 105ºC. COD and total phosphorus digestions are conducted at 150ºC, and total nitrogen digestions are at the 105ºC.
In addition, the HI 839800 has 3 LED’s for visual indication. A green LED indicates power, a blinking red LED warns the user of a hot heater block (above 50ºC), and a yellow LED indicates heating.
A three hour countdown timer is also incorporated to control timed digestions. When the countdown timer expires, a beep will sound and the heating element will turn off.
The reactor contains a thermal fuse that prevents overheating by turning off the heating element.
Block tempertaure is continuously displayed on the LCD even when there is no active temperature program running.
HI 839800-02 (230V) is supplied with power cable and instructions.
|Temperature of Reaction||105°C or 150°C (221°F or 302°F)|
|Temperature Stability||±0.5°C (±0.9°F)|
|Temperature Range||-10°C to 160°C (14°F to 320°F)|
|Capacity||25 vials (dia 16 x 100 mm), one receptacle for a stainless steel reference thermometer|
|Warm-up Time||10-15 minutes, depending on selected temperature|
|Operating Mode||timed (0 to 180 minutes) or infinity mode|
|Environment||5 to 50°C (41 to 122°F)|
|HI 839800-01: 115 VAC; 60 Hz; 250 W
HI 839800-02: 230 VAC; 50 Hz; 250 W
|Dimensions||190 x 300 x 95 mm (7.5 x 11.8 x 3.7″)|
|Weight||approximately 4.8 kg (10.6 lb.)|
