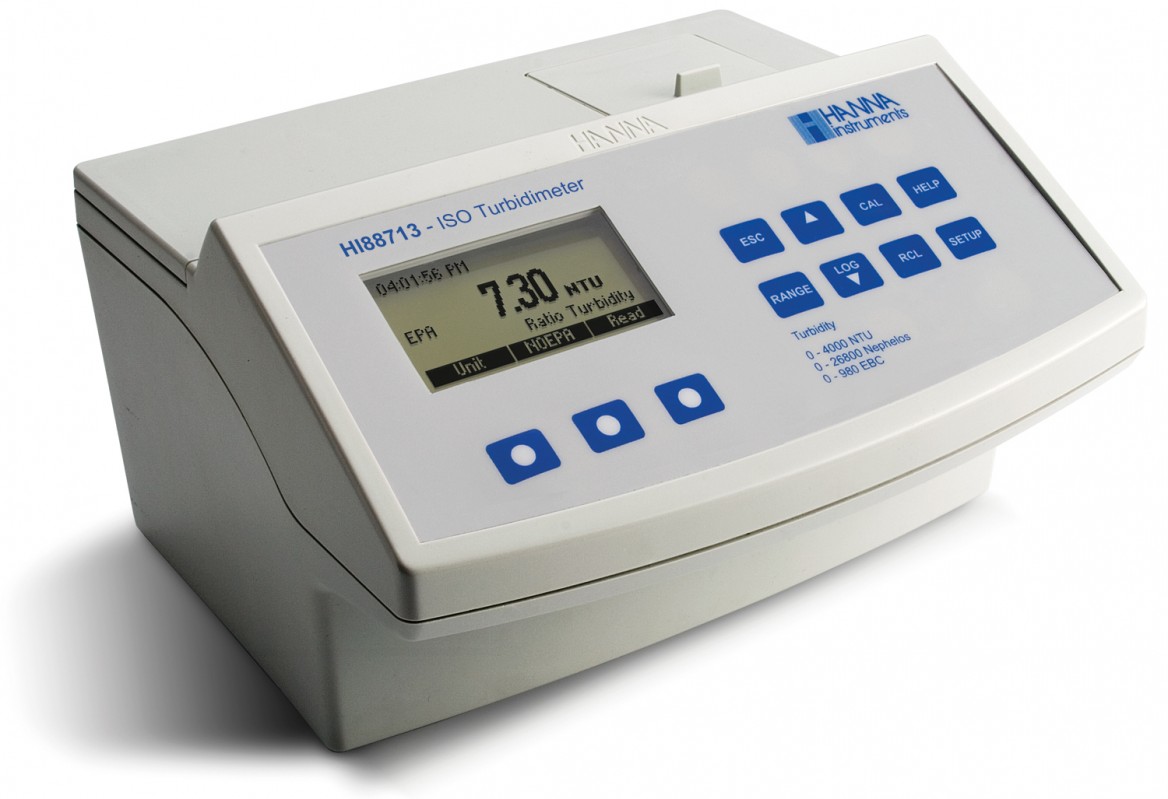

HI88713 Benchtop Turbidity, ISO 7027

• Graphic display, backlit LCD
• Two, three, four or five point calibration
• GLP features
• Log up to 200 records
• Contextual help and tutorial mode
• USB PC connectivity

The HI 88713 turbidity bench meter meets and exceeds the requirements of the ISO 7027 standard.

HI 88713 is based on an optical system which guarantees accurate results, long term stability and minimizes stray light and color interferences. It also compensates for variations in intensity of the LED, limiting the need for frequent calibration.

Depending on the measured sample and needed accuracy, normal, continuous or signal averaging measurement can be selected.

A two, three, four or five-point calibration can be performed using the supplied standards. Calibration points can be modified when user prepared standards are used.

The HI 88713 turbidity bench meter has complete GLP (Good Laboratory Practice) functions that allow traceability of the calibration conditions.

The HI 88713 turbidity bench meter has a user-friendly interface with an easy to understand, graphic LCD. Comprehensive contextual help is available at a simple key press. Furthermore, a tutorial mode of operation guides the user step by step through the analysis process.

Up to 200 measurements can be stored in internal memory. Data can be transferred to a PC via optional HI 920013 USB cable and HI 92000 Windows® compatible software.



Order Information:   HI 88713-02 (230V) is supplied with sample cuvettes and caps (6), calibration cuvettes, silicone oil, tissue for wiping cuvettes, power adapter and instruction manual.

  Manual: Download

Specification :

Range	FNU Mode	0.00 to 9.99; 10.0 to 99.9; 100 to 1000 FNU
	FAU Mode	10.0 to 99.9; 100 to 4000 FAU
	NTU Ratio Mode	0.00 to 9.99; 10.0 to 99.9; 100 to 4000 NTU 0.00 to 9.99; 10.0 to 99.9; 100 to 980 EBC
	NTU Non-Ratio Mode	0.00 to 9.99; 10.0 to 99.9; 100 to 1000 NTU 0.00 to 9.99; 10.0 to 99.9; 100 to 245 EBC
Resolution	FNU Mode	0.01; 0.1; 1 FNU
	FAU Mode	0.1; 1 FAU
	NTU Ratio Mode	0.01; 0.1; 1 NTU / 0.01; 0.1; 1 EBC
	NTU Non-Ratio Mode	0.01; 0.1; 1 NTU / 0.01; 0.1; 1 EBC
Accuracy @25°C	FNU Mode	±2% of reading plus stray light
	FAU Mode	±10% of reading
	NTU Ratio Mode	±2% of reading plus stray light /  ±5% of reading above 1000 NTU
	NTU Non-Ratio Mode	±2% of reading plus stray light
Range Selection		automatic
Repeatability		±1% of reading or stray light, whichever is greater
Stray Light		< 0.1 NTU (0.05 EBC)
Light Detector		silicon photocell
Light Source		IR LED
Method		ISO 7027 Method
Measuring Mode		normal, average, continuous.
Turbidity Standards		<0.1, 15, 100, 750 FNU and 2000 NTU
Calibration		two, three, four or five-point calibration
Log Memory		200 records
PC Connectivity		USB
Environment		0°C (32°F) to 50°C (122°F); max 95% RH non-condensing
Power Supply		12 Vdc power input
Dimensions / Weight		230 x 200 x 145 mm (9 x 7.9 x 5.7”) / 2.5 Kg (88 oz.)
