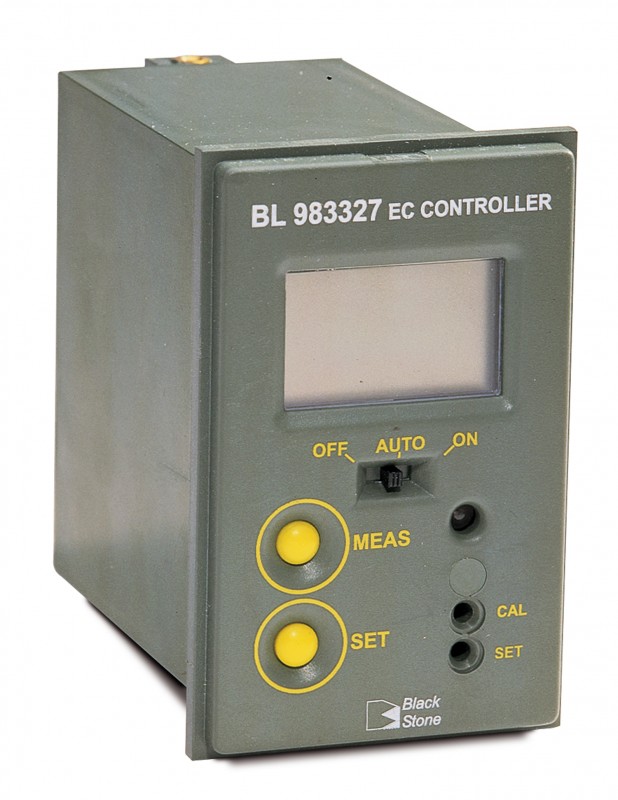

BL983327-1 EC Mini Controller upto 10.00 mS/cm, 230V

• Easy to handle
• Fire retardant casing
• Selectable overdose protection system
• Splash resistant cover

Dosing Relay: contact close when measure > set point

BL 983327 is a panel mounted mini controller with an output relay that has been designed for easy, affordable installation in tight spaces—ideal for simple yet effective process control.

This instrument is provided with automatic compensation for variations in temperature. The probe (not included) is easy to clean and requires very little maintenance. The calibration is performed at one point, through a trimmer.

All wiring and connections to external devices are done through the terminals
on the rear panel. The multicolor LED continuously indicates if the controller is in measurement, dosing or alarm mode.

Users can choose automatic or manual dosing mode by a switch on the front panel. Manual control is particularly useful during maintenance operations because it permits operators to enable or disable the dosing relay according to need. To help prevent overdosing, the overtime control system advises users when the relay is active
too long.



Order Information:
BL 983327-1 ( 115/230V) is supplied with mounting brackets, transparent cover and instruction manual.

  Manual: Download

Specification :

Range		0.00 to 10.00 mS/cm
Resolution		0.01 mS/cm
Accuracy @ 25°C		±2% F.S.
Probe		HI 7632-00 EC/TDS probe with internal temperature sensor and 2 m (6.6’) cable (not included)
Temperature Compensation		Automatic, 5 to 50°C (41 to 122°F) with ß = 2%/°C
Calibration		manual, with CAL trimmer
Dosing Relay		maximum 2A (fuse protected), 250 Vac, 30 VDC, contact close when measure > set point
Setpoint		adjustable from 0 to 10 mS/cm
Overtime		adjustable, typically from 5 to approx. 30 minutes
Power Supply		See Chart
Dimensions		79 x 49 x 95 mm (3.1 x 1.9 x 3.7’’)
