Advanced pH/ORP Benchtop Meter – HI6221-02

Advanced pH/ORP Benchtop Meter – HI6221-02

Measure pH/mV (pH) or mV/Rel. mV (ORP) with Temperature

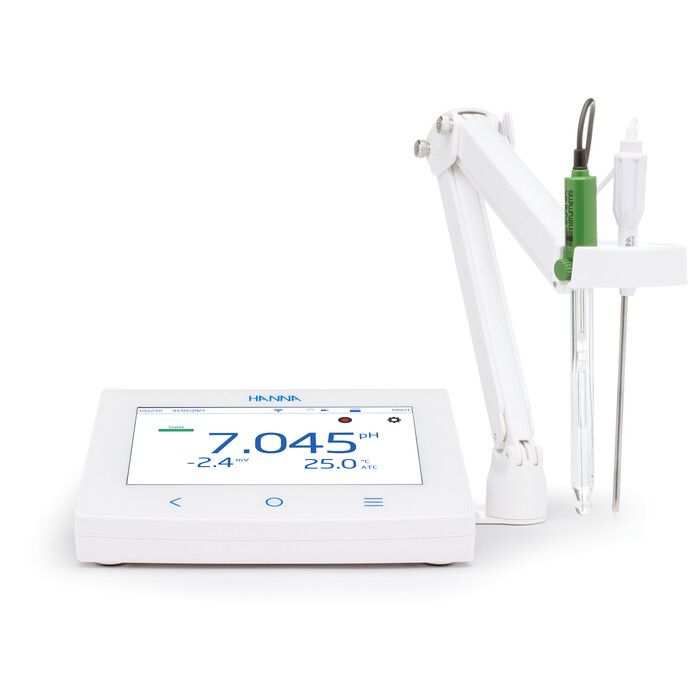

HI6221 is a streamlined benchtop meter with a large touch screen display, comprised of a housing and an integrated pH / ORP measurement module.

Compact and easy to operate, the benchtop meter is delivered with Hanna Instruments HI1131B double junction combination pH electrode, together with HI7662-TW temperature probe.

HI1131B is a glass body, double junction, refillable pH electrode with an indicating sensor made of High Temperature (HT) glass. The double junction reference and HT glass design allow the HI1131B to be used in a wide variety of applications including samples with metals and elevated temperatures. Probe connection to the unit is secured through a galvanically isolated BNC connection. HI7662-TW stainless steel temperature probe allows the meter to automatically temperature compensate (ATC) pH measurements.

User interface

• 7-inch capacitive touch screen with multi-touch support
• Capacitive touch back, home and system menu keys
• User-friendly icons and symbols allow users to easily navigate and interpret the instrument functions.
• The user can select between five different views:
  • Basic measurement configuration
  • Simple GLP with calibration information
  • Full GLP with electrode status and calibration point details
  • Live updated, interactive graph
  • Tabulated data with date, time, and notes

Measurement

• Measure pH/mV (pH) or mV/Rel.mV (ORP) with temperature
• Application-specific profiles allow quick and direct measurement without the need to update the sensor and system settings
• Active log during measurement o Measurement stability indicator (using the Stability Criteria setting)
• Reading modes: direct and direct/autohold
• Temperature compensation can be Automatic (using temperature probe) or set manually
• Audible and/or alarm messages for measurements outside of predefined limits
• Galvanic isolation for pH/ORP measurement

Calibration

• 5-point pH calibration with automatic recognition for standard buffers (Hanna and NIST buffers)
• Choice of standard or custom buffers for calibration
• Non-volatile memory saves data and settings

Logging

• Data log collection of at least 1,000,000 data points (with time and date stamp)
• Logging types: manual, automatic, autohold
• Sample ID for manual and Autohold data

Connectivity

• Transfer logged data to a USB thumb drive
• Log files that include measurements and calibration data (as .csv file)
• FTP and email for log export via Ethernet and Wi-Fi connection
• USB type A for USB stick, keyboard, and printer
• USB type C for USB stick and PC connection

Help section for meter guidance

• Video support presentation of main functionalities

Manual :

Specification

SKU	HI6221-01
Product Name	Advanced pH/ORP Benchtop Meter- HI6221-01
Quote Required	Yes
pH Range	-2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to
pH Range	20.000 pH
pH Resolution	0.1 pH; 0.01 pH; 0.001 pH
pH Accuracy	±0.1 pH; ±0.01 pH; ±0.002 pH (±1 last significant digit)
mV Range	±2000.0 mV
mV Resolution	1 mV; 0.1 mV
mV Accuracy	±0.2 mV ±1 last significant digit
Temperature Range	-20.0 to 120.0 °C; -4.0 to 248.0 °F; 253.0 to 393.0 K
Temperature Resolution	0.1 °C / 0.1 °F / 0.1 K
Temperature Accuracy	±0.2 °C / ±0.4 °F / ±0.2 K
Relative mV offset range	±2000.0 mV
pH Calibration Calibration points	Up to 5
pH Calibration Type	Automatic; Semiautomatic; Manual
pH Calibration Standard buffers	Hanna and NIST
pH Calibration Standard buffers	pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45″
pH Calibration Custom buffers	Up to 5
pH Calibration Custom group	Up to 5
pH Calibration 1st calibration point	Offset or Points (user setting)
pH Calibration Reminder	Disabled
pH Calibration Reminder	Daily
pH Calibration Reminder	Periodic
Temperature Compensation	Automatic or Manual
Reading Modes	Direct; Direct/Autohold
Reading Stability criteria	Accurate; Medium; Fast
Reading Isopotential	7.000 or 4.010
Reading Sampling rate	1000 ms
pH Views Basic	Measurement (pH, mV, Rel.mV, Abs.mV)
pH Views Basic	Temperature, Stability status
pH Views Simple GLP	Basic view information
pH Views Simple GLP	Last calibration date, electrode offset, average slope, and electrode condition
pH Views Full GLP	Simple GLP information and calibration point details
pH Views Table	Measurements updated every second are displayed in table
pH Views Graph (Plot)	pH (or mV) and temperature versus time graph can be panned or zoomed (pinch-to-zoom technology)
Logging Type	Automatic, Manual, Auto-hold
Logging Number of records	50,000 maximum per file / Stores at least 1,000,000 data points per user”
Logging Automatic interval	1, 2, 5, 10, 30 seconds
Logging Automatic interval	1, 2, 5, 10, 15, 30, 60, 120, 150, 180 minutes”
Logging Sample ID	Incremental mode
Logging Export option	.csv file format
Logging Export option	Users Up to 9 users and admin. account (default)
Connectivity USB-A	2 ports for keyboard input or USB thumb drive
Connectivity USB-C	1 port for PC connectivity and USB-C type thumb drive
Connectivity Wi-Fi & Ethernet	FTP / Web server Log transfer and download Email
Connectivity RS232	Connecting peripherals
Power supply	DC adapter 100-240AC to 24VDC 2.5A
Environment	0 – 50 °C / 32 – 122 °F / 273 – 323 K maximum 95% RH non-condensing
Dimensions	205 x 160 x 77 mm (8.0 x 6.2 x 3.0 “)
Weight	Approximately 1.2 kg (2.65 lbs.)
