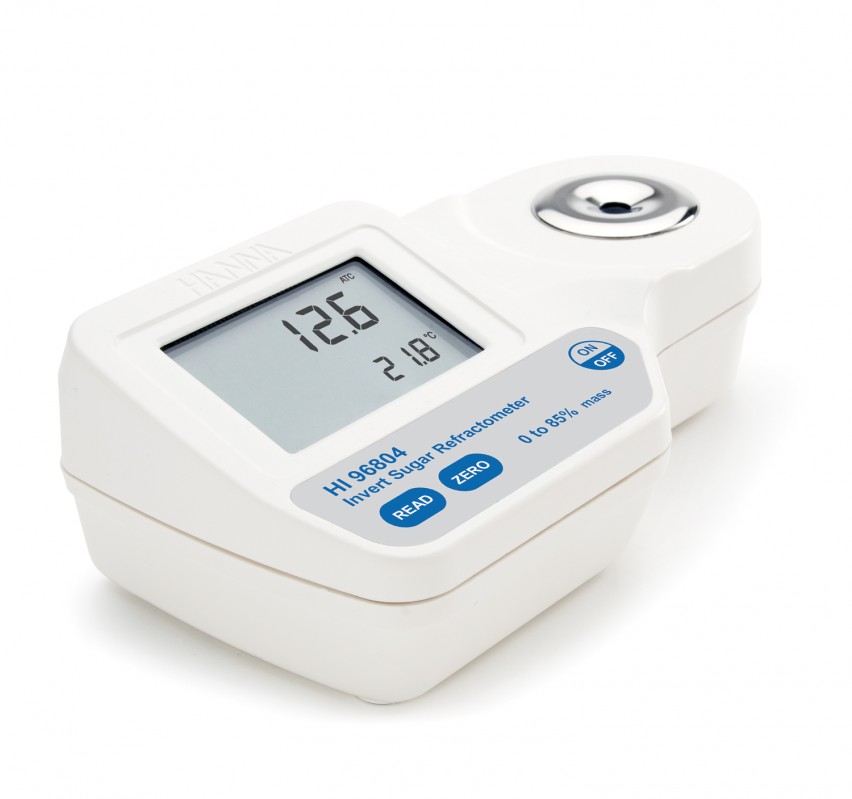

เครื่องวัดความหวาน (น้ำตาลอินเวิร์ต) แบบภาคสนาม รุ่น HI96804

เครื่องวัดการหักเหของแสงดิจิทัล HI96804 Invert Sugar มีความทนทาน พกพาสะดวก และกันน้ำได้ สำหรับการตรวจวัดในห้องปฏิบัติการหรือภาคสนาม เครื่องมือนี้นำเสนอการวิเคราะห์เฉพาะเพื่อกำหนดความเข้มข้นของน้ำตาลที่แม่นยำ อุปกรณ์เชิงแสงนี้ใช้การวัดดัชนีการหักเหของแสงเพื่อกำหนดพารามิเตอร์ที่เกี่ยวข้องกับการวิเคราะห์ความเข้มข้นของน้ำตาล

• Ideal for the analysis of fruits, energy drinks, puddings, soy milk juices, jam, marmalade, honey, soups, jelly, tofu and condiments
• The dual-level LCD displays measurement and temperature readings simultaneously
• Automatic Temperature Compensation for accurate measurements
• Easy measurement; place a few drops of the sample in the well and press the READ key
• BEPS (Battery Error Prevention System) alerts the user in the event that low battery power could adversely affect readings.
• IP65 water protection; built to perform under harsh laboratory and field conditions.
• Quick, accurate results, readings are displayed in approximately 1.5 seconds.
• Single point calibration with distilled or deionized water
• Small sample size, can be as small as 2 metric drops.
• Automatic shut-off after three minutes of non-use
• Stainless steel sample well, easy to clean and corrosion resistant
• ABS thermoplastic casing

The HI96804 Invert Sugar digital refractometer is rugged, portable and water resistant for measurements in the lab or field. This instrument offers a specific analysis to determine accurate sugar concentration.

This optical instrument employs the measurement of the refractive index to determine parameters pertinent for sugar concentration analysis.

The actual measurement of refractive index is simple and quick and provides the operator a standard accepted method for sugar content analysis. Samples are measured after a simple user calibration with deionized or distilled water. Within seconds this instrument measures the refractive index of the sample and converts it to percent by weight concentration units. This digital refractometer eliminates the uncertainty associated with mechanical refractometers and is easily portable for measurements in the field.

The HI 96804 utilizes internationally recognized references for unit conversion and temperature compensation and employ methodology recommended in the ICUMSA Methods Book (internationally recognized body for sugar analysis).

Temperature (in °C or °F) is displayed simultaneously with the measurement on the large dual level display along with icons for low power and other helpful messages.



Order Information:   HI 96804 is supplied with battery and instruction manual.

  Manual: Download

Specification

Range	Sugar Content	0 to 85% (by weight) (% invert sugar)
	Temperature	0 to 80°C (32 to 176°F)
Resolution	Sugar Content	0.1
	Temperature	0.1°C (0.1°F)
Accuracy (@20°C)	Sugar Content	±0.2%
	Temperature	0.3°C (0.5°F)
Temperature Compensation		automatic between 10 and 40°C (50 to 104°F)
Measurement Time		approximately 1.5 seconds
Minimum Sample Volume		100 µL (to cover prism totally)
Light Source		yellow LED
Sample Cell		stainless steel ring and flint glass prism
Auto-off		after 3 minutes of non-use
Enclosure Rating		IP65
Battery Type / Battery Life		9V / approximately 5000 readings
Dimensions / Weight		192 x 104 x 69 mm (7.6 x 4.1 x 2.7”) / 420 g (14.8 oz.)
