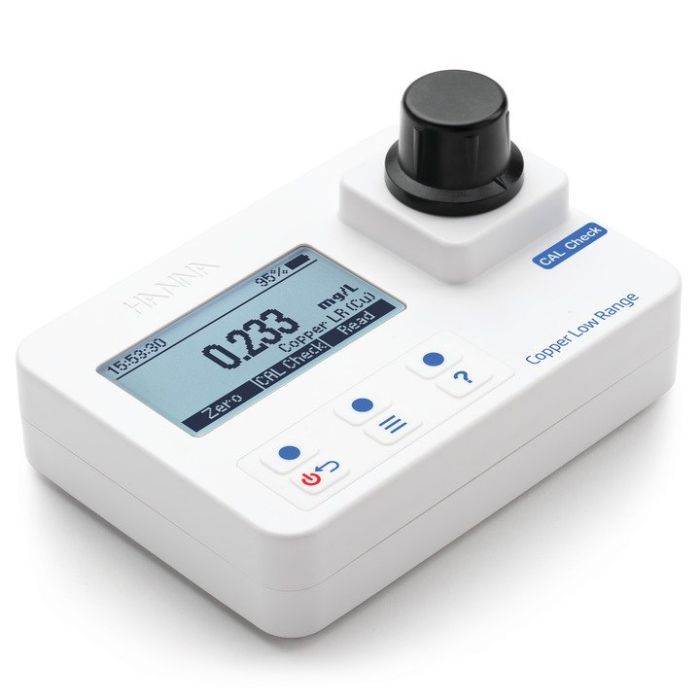

HI97747C is an advanced portable photometer for the measurement of copper in water. This meter offers a superior optical system that utilizes a reference detector and narrow band interference filters for extremely fast and repeatable measurements.
- No warm up time before taking a measurement
- Tutorial mode for step-by-step instructions
- CAL Check to verify meter performance
Due to its malleability, thermal and electrical conductivity, and corrosion resistance, copper is used in a variety of industrial and technological applications. Copper may also be present in natural water and effluents due to widespread use to control biological growths in reservoirs and distribution pipes.
The HI97747 uses the bicinchoninate method to measure copper in water with concentrations of up to 1.500 mg/L (ppm). When the reagent is added to samples containing copper, the sample will turn a purple hue; the greater the concentration, the deeper the color. The associated color change is then colorimetrically analyzed according to the Beer-Lambert Law which states that light is absorbed by a complementary color, and the emitted radiation is dependent upon concentration.
For lower levels of copper, a narrow band interference filter at 575 nm allows only green-yellow light to be emitted and passed through the sample cuvette. As the change in color of the reacted sample increases, absorbance of the specific wavelength of light also increases, while transmittance decreases.
Manual : Download
|Product Name||Copper Low-Range Portable Photometer with CAL Check|
|Copper Range||0.000 to 1.500 mg/L (as Cu2+)|
|Copper Resolution||0.001 mg/L|
|Copper Accuracy||±0.010 mg/L ±5% of reading at 25°C|
|Copper Method||adaptation of the EPA Method|
|Photometer/Colorimeter Light Source||LED with 575 nm bandpass filter|
|Photometer/Colorimeter Light Detector||silicon photocell|
|Bandpass Filter Bandwidth||8 nm|
|Bandpass Filter Wavelength Accuracy||±1.0 nm|
|Cuvette Type||round 24.6 mm diameter (22 mm inside)|
|Display||128 x 64 pixel B/W LCD with backlight|
|Logging Memory||50 readings|
|Battery Type/Life||1.5 V AA Alkaline (3 pcs.) / > 800 measurements (without backlight)|
|Automatic Shut-Off||after 15 minutes of inactivity (30 minutes before a READ measurement)|
|Environment||0 to 50°C (32 to 122°F); 0 to 100% RH (IP67)|
|Weight||380 g (13.4 oz.)|
|Dimensions||142.5 x 102.5 x 50.5 mm (5.6 x 4.0 x 2.0″)|
|Ordering Information||HI97747C is supplied with CAL Check standards, cuvettes (2), caps (2), plastic inserts for cuvette, (2), scissors, cuvette cleaning cloth, 1.5V AA batteries (3), instruction manual, and instrument quality certificate.|
