เครื่องวัดค่ากรด-ด่าง/โออาร์พี รุ่น HI98190 (pH/ORP)

The HI98190 is a rugged, portable pH meter with the performance and features of a benchtop. This professional, waterproof meter complies with IP67 standards and measures pH, ORP and temperature. The HI98190 is supplied with all necessary accessories to perform a pH/temperature measurement packaged into a durable carrying case.

• CAL Check™ Calibration Diagnostics
• Waterproof Quick Connect
• Ergonomic, One-Handed Operation

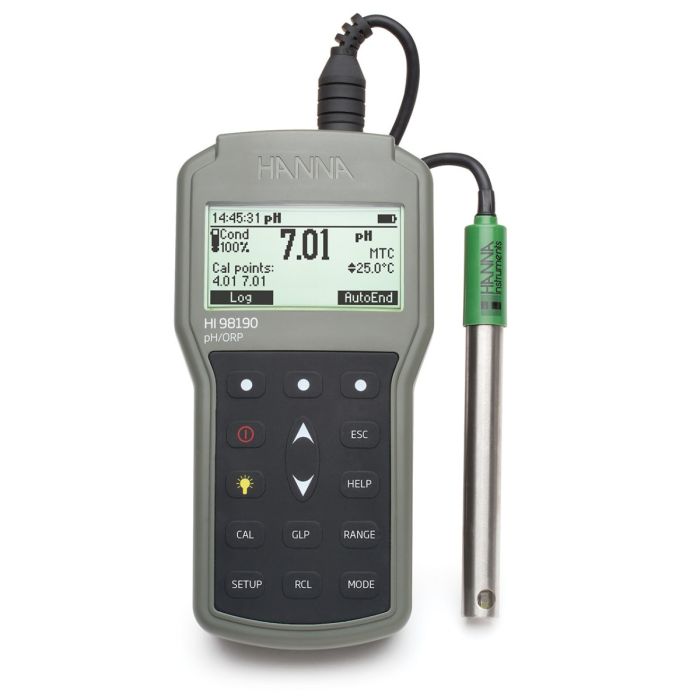

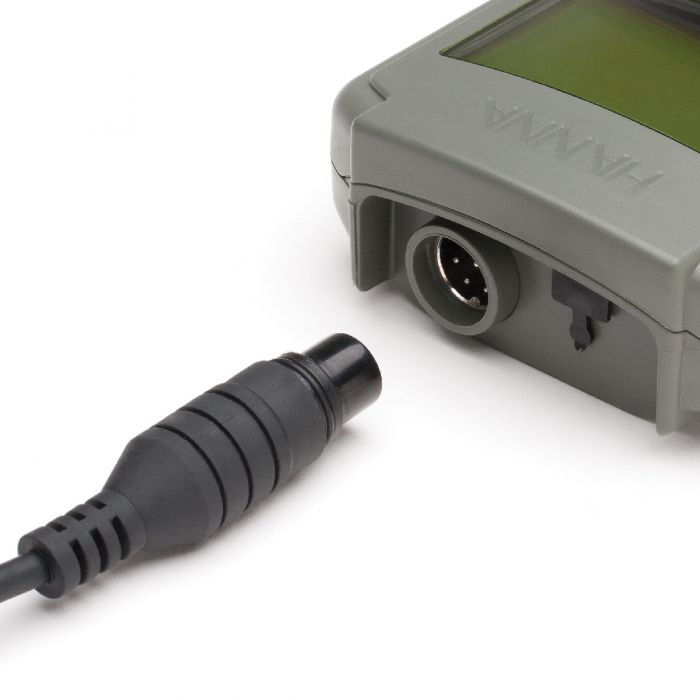

For the measurement of pH, the HI98190 comes with an HI12963 titanium body amplified pH electrode with a built-in temperature sensor for automatic temperature compensated readings. The titanium probe body is chemically resistant to aggressive chemicals and is virtually unbreakable. The HI12963 pH/temperature electrode features a newly designed Quick Connect DIN connector that provides a simple waterproof connection without any threads.

Hanna’s unique CAL Check™ feature alerts the user to potential problems during the calibration process. By comparing previous calibration data to the current calibration, the meter will alert the user with display prompts when the probe needs to be cleaned or is broken, and if the pH buffer might be contaminated. After calibration, the overall probe condition is displayed as a percentage from 0 to 100% in increments of 10%.

The probe condition is affected by both the offset and slope characteristics of the pH electrode and is displayed on the measurement screen on the day of calibration and in the GLP data. Calibration can be performed up to five points with seven preprogrammed standard pH buffers and five custom ones to achieve a pH accuracy of ±0.002 with ±0.001 pH resolution.

On-Screen Features

Setup screen
Our extensive setup screen features a host of configurable options such as time, date, temperature units and language for help screens and guides.

Calibration
pH calibration features detailed CAL Check™ messages. Users are guided through the calibration procedure with step-by-step on-screen instructions.

GLP
Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including: date, time, offset, slope and buffers used in the last calibration can be reviewed.

PRIMARY APPLICATIONS: Food & Beverage, Plating, Water and Wastewater, Chemical Manufacturing, Agriculture, and Environmental

Manual : Download

Specification

SKU	HI98190
Product Name	Professional Waterproof Portable pH/ORP Meter – HI98190
Quote Required	Yes
pH Range	-2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH
pH Resolution	0.1 pH; 0.01 pH; 0.001 pH
pH Accuracy	±0.1; ±0.002 pH
pH Calibration	up to five point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) + five custom buffers
pH Temperature Compensation	manual or automatic from -20.0 to 120.0°C (-4.0 to 248.0°F)
pH CAL Check (electrode diagnostics)	Yes
pH Input impedence	10¹² Ohms
mV Range	±2000 mV
mV Resolution	0.1 mV
mV Accuracy	±0.2 mV
mV Relative Offset	Yes
Temperature Range	-20.0 to 120.0°C (-4.0 to 248.0°F)
Temperature Resolution	0.1°C (0.1°F)
Temperature Accuracy	±0.4°C (±0.8°F) (excluding probe error)
Temperature Compensation	manual or automatic from -20.0 to 120.0°C (-4.0 to 248.0°F)
pH Electrode	HI12963 Titanium body, pH electrode with internal temperature sensor, quick DIN connector and 1 m (3.3’ cable)
Temperature Probe	integrated into pH electrode
Logging Type	Log-on-demand
Logging Memory	200 samples (100 pH and 100 mV range)
Connectivity	opto-isolated USB with optional HI 92000 software and micro USB cable
Automatic Shut-Off	user selectable
GLP	Yes
Calibration Timeout Reminder	Yes
Autoend	Yes
Display	dot matrix LCD
Battery Type/Life	1.5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight)
Environment	0 to 50°C (32 to 122°F); RH 100% (IP67)
Dimensions	185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”)
Weight	400 g (14.2 oz.)

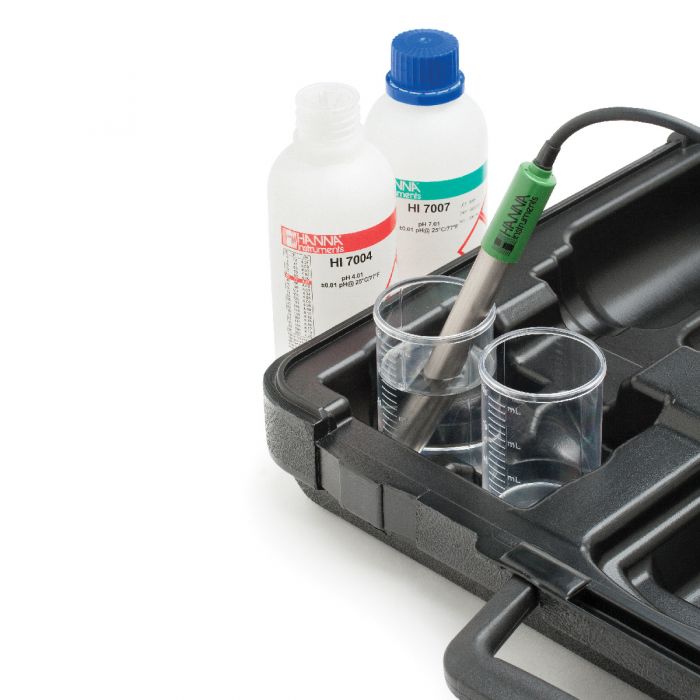

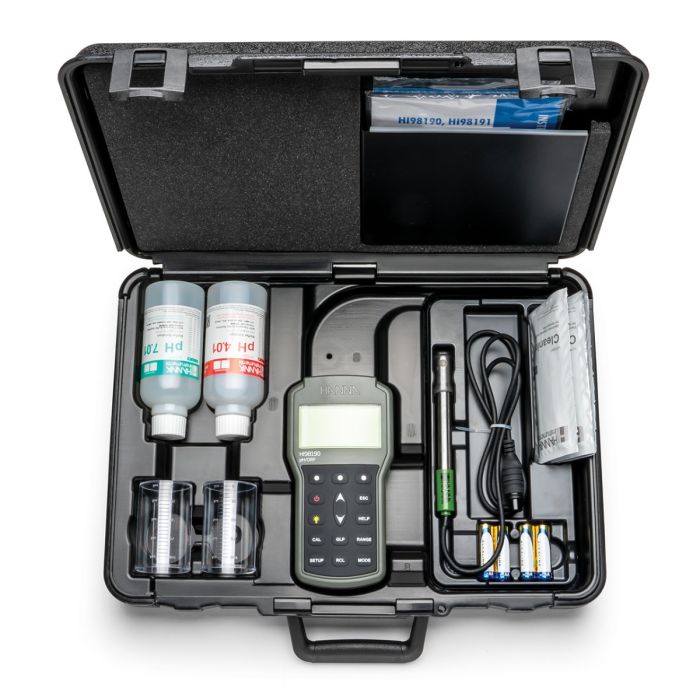

Ordering Information	HI98190 is supplied with HI12963 titanium body pH electrode, HI7004M pH 4.01 buffer solution (230 mL), HI7007M pH 7.01 buffer solution (230 mL), HI700601 electrode cleaning solution sachet (2 x 20 mL), 100 mL plastic beaker (2), 1.5V AA batteries (4), HI92000 PC software, HI920015 micro USB cable, instruction manual, quick start guide, instrument quality certificate, and HI720190 hard carrying case.
